2 / 3선식 트랜스미터 전원공급기 2
/ 3-wire
Transmitter Repeater
|

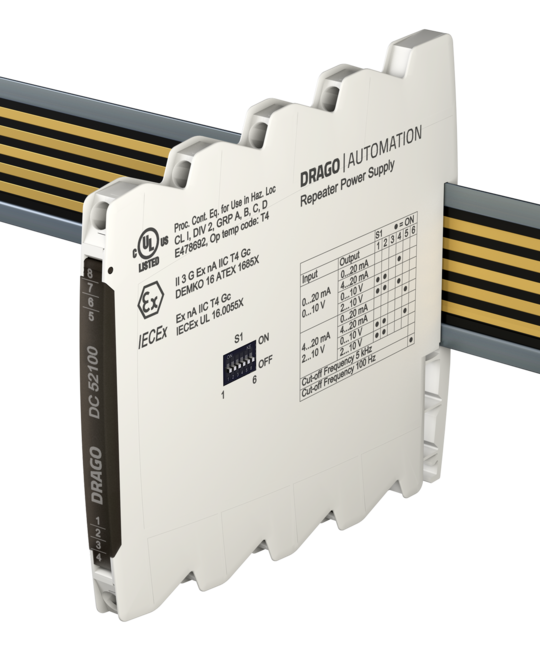

DC52100
초슬림형 2 / 3선식 트랜스미터 전원공급기
2
/ 3-wire
Repeater Power Supply DC 52100
|
Input: |
0 to 20 mA, 4 to 20 mA, 0 to 10 V, 2 to 10 V, calibrated switchable | |
Output: |
0 to 20 mA, 4 to 20 mA, 0 to 10 V, 2 to 10 V, calibrated switchable | |
Power supply: |
24 V DC | |
Features: |
Protective separation, housing width: 6.2 mm |
|
|
DC52500
초슬림형 하트 통신 2 / 3선식 트랜스미터 전원공급기
2
/ 3-wire Repeater Power Supply HART DC 52500
|
Input: |
0/4 to 20 mA |
Energization of 2-wire transmitters | |
Output: |
0/4 to 20 mA |
Bidirectional HART communication | |
Power supply: |
24 V DC |
| |
Features: |
Protective separation, housing width: 6.2 mm |
|
|
DC58
경제형 루프 전원 트랜스미터 신호중계기
Passive Transmitter Repeater DC 58
|
Input: |
4 to 20 mA | |
Output: |
4 to 20 mA | |
Voltage drop: |
Approx. 4.7 V | |
Features: |
Protective separation, housing width: 11.2 mm |
|
|
DN21000
초슬림형 범용 신호분배기 / 전원공급
Signal Splitter
/ Repeater DN 21000
|
Input: |
0 to 20 mA, 4 to 20 mA, 0 to 5 V, 1 to 5 V, 0 to 10 V, 2 to 10 V | |
Output 1: |
0 to 20 mA, 4 to 20 mA, 0 to 5 V, 1 to 5 V, 0 to 10 V, 2 to 10 V | |
Output 2: |
0 to 20 mA, 4 to 20 mA, 0 to 5 V, 1 to 5 V, 0 to 10 V, 2 to 10 V | |
Power supply: |
24 V DC | |
Features: |
Calibrated signal setting, protective separation, housing width: 6.2 mm |
|
|
DG35200 /
DG35280
초슬림형 범용 신호 알람 릴레이 / 오픈콜렉터
Limit Alarm Unit DG 35200
|
Input: |
0(4) to 20 mA, ±20 mA, 0 to 10 mA, ±10 mA, ABS 20 mA
0 to 10 V, ±10 V, 0 to 5 V, ±5 V, ABS 10 V
4 to 20 mA / NE43 | |
Output relay: |
250 V AC, 30 V DC, 2 A | |
Power supply |
24 V DC | |
Features:
|
Signal on In-Rail-Bus E (supply circuit) at device failure, cable break und short circuit
Housing width: 6.2 mm |
|
|
DG3101
신호 한계 감시 알람 릴레이
Limit Value
Monitor DG 3101
|
Input: |
0(4) ~ 20mA, 0 ~ 10V | |
Output relays: |
1-
SDDT, 250V AC/DC, 6A | |
Power supply: |
24V AC/DC | |
Features: |
Relay with high power handling, protective separation, housing width: 12.5 mm |
|
|

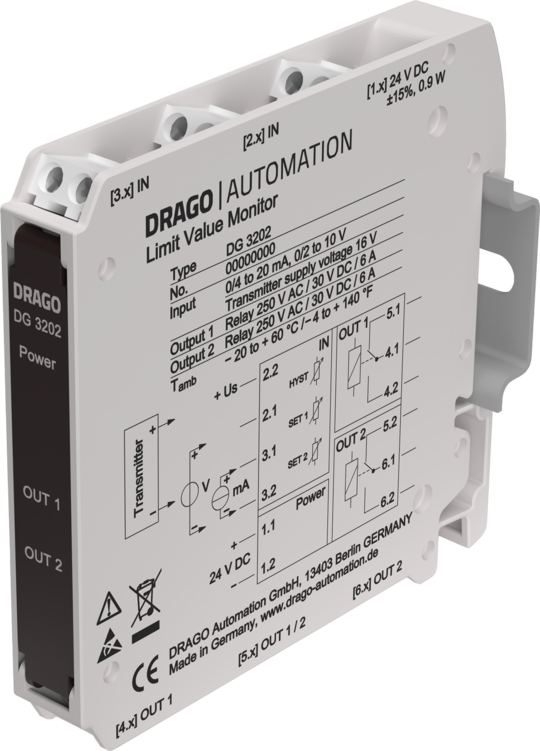

DG3202
/ DG3282 신호 한계 감시 알람 릴레이 / 오픈콜렉터
Limit
Value Monitor DG 3202 / DG 3282
|
Input: |
0(4) ~ 20mA, 0 ~ 10V | |
Output relays: |
2-SPDT,
250V AC/DC, 6A | |
Power supply: |
24V AC/DC | |
Features: |
Relay with high power handling, protective separation, housing width: 12.5 mm |
|
|
DMB96100
초슬림형 모드버스 RTU (RS485)
표준
AI 통신 모듈 / 트랜스미터
전원공급
Standard Signal AI Module DMB 96100
|
Sensor input: |
0 to 20 mA, 4 to 20 mA
0 to 10 V, 2 to 10 V
0 to 5 V, 1 to 5 V | |
Bus protocol: |
Modbus RTU | |
Power supply: |
24 V DC | |
Features: |
Protective Separation, housing width: 6.2 mm |
|
|
DMB96500
초슬림형 범용
모드버스 RTU (RS485) AI
/ DI 통신
모듈 / 트랜스미터 전원공급
Universal AI
/ DI Module DMB 96500
|
Sensor input: |
Standard signals: 0/4 to 20 mA, 0/2 to 10 V, 0/1 to 5V
Current: ±1 mA, ±20 mA, ±100 mA
Voltage: ±1 V, ±10 V, ±100 V, ±300 V
mV/Shunt Voltage: ±50 mV, ±100 mV, ±500 mV
Resistance: 5 kΩ, 20 kΩ, 100 kΩ
Potentiometer: 500 Ω, 3 kΩ, 50 kΩ, 100 kΩ
Pt: Pt100 ... Pt 10000, JPt50, JPt100
Ni: Ni100 ... Ni1000
KTY: 66 types
Thermocouple: A,B,C,D,E,J,K,L,N,R,S,T,U
Binary-/Switching input: PNP, NPN, Push-Pull, Contact, NAMUR, S0-Switch | |
Bus protocol: |
Modbus RTU | |
Power supply: |
24 V DC | |
Features: |
Protective Separation, Housing width: 6.2 mm |
|
|
Signal
Repeater 적용사례
|
|
|
|
