고성능 슬림형 (12.5mm) 신호변환기
The High Functionality Slim Signal Converter Series

Db6200

DB6200 고성능 슬림형 범용 신호변환기
Bipolar Isolation Amplifier DB 6200

Input:0 to ±20 mA, 0 to ±10 mA, 0 to ±10 V, 0 to ±5 V,  live/dead-zero
Output:0 to ±20 mA, 0 to ±10 mA, 0 to ±10 V, 0 to ±5 V,  live/dead-zero
Power supply:20 to 253 V AC/DC
Features:Pluggable screw clamp terminals, zero/span compensation, protective separation
housing width: 12.5 mm

Db6200

DB6230 고성능 슬림형 필터 신호변환기
Filter Isolation Amplifier DB 6230

Input:0 to ±20 mA, 0 to ±10 mA, 0 to ±10 V, 0 to ±5 V,  live/dead-zero
Output:0 to ±20 mA, 0 to ±10 V
Filter functionCut-off frequency: 10 Hz, 1 Hz, 0.5 Hz, 0.1 Hz
Power supply:20 to 253 V AC/DC
Features:Pluggable screw clamp terminals, zero/span compensation, protective separation
housing width: 12.5 mm

Db6250

DB6250 고성능 슬림형 반전(역) 신호변환기
Inverse Isolation Amplifier DB 6250

Input:0 to 20 mA, 0 to 10 mA, 0 to 10 V, 0 to 5 V,  live/dead-zero
Output:0 to 20 mA, 0 to 10 mA, 0 to 10 V, 0 to 5 V,  live/dead-zero
Characteristic:inverse characteristic
Power supply:20 to 253 V AC/DC
Features: Pluggable screw clamp terminals, zero/span compensation, protective separation
housing width: 12.5 mm

Dh1022

DH1000 고성능 슬림형 루프 전원 신호 아이솔레이터
Passive (Loop-Powered) Isolator DH 1000

Input:0(4) to 20 mA1- or 2-channel
Output:0(4) to 20 mA
Voltage drop:< 2.0 V
Features:Pluggable screw clamp terminals, protective separation, housing width: 12.5 mm

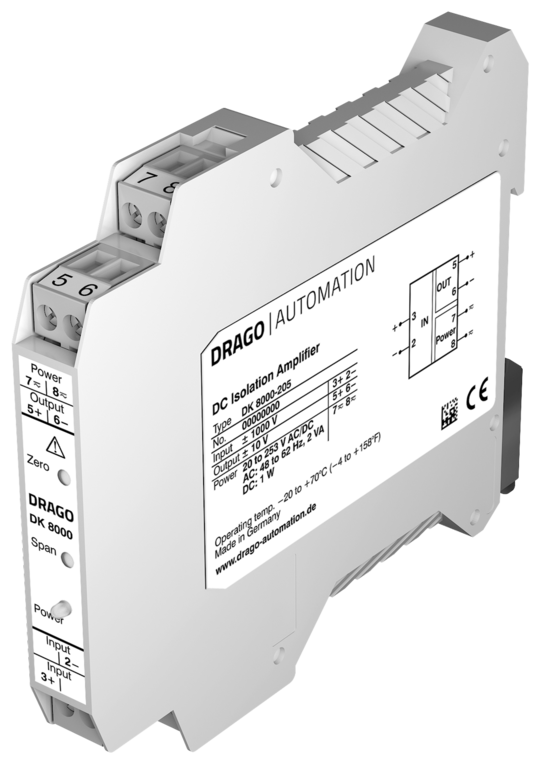

Dk8000

DK8000 주문형 고성능 슬림형 신호변환기
Customer-Specific Isolation Amplifier DK 8000

Input:customer-specific
Output:customer-specific
Power supply:20 to 253 V AC/DC
Features:Pluggable screw clamp terminals, zero/span compensation optional, protective separation
housing width: 12.5 mm

Dn2000

DN2000 고성능 슬림형 표준 신호변환기
Isolation Amplifier DN 2000

Input:0...20 mA, 4...20 mA, 0...10 V
Output:0...20 mA, 4...20 mA, 0...10 V
Power supply:20 ... 253 V AC/DC
Features:Pluggable screw clamp terminals, calibrated signal setting, protective separation
housing width: 12.5 mm

Dn2300

DN2300 고성능 슬림형 4-20mA 신호 아이솔레이터
Isolation Amplifier DN 2300

Input:0(4) to 20 mA
Output:0(4) to 20 mA
Power supply:20 to 253 V AC/DC
Features:Pluggable screw clamp terminals, zero/span compensation, protective separation
housing width: 12.5 mm

Dn2400

DN2400 슬림형 표준 신호변환기
Isolation Amplifier DN 2400

Input:0 to 20 mA, 4 to 20 mA, 0 to 10 V
Output:0 to 20 mA, 4 to 20 mA, 0 to 10 V
Power supply:20 to 253 V AC/DC
Features:Pluggable screw clamp terminals, calibrated signal setting, housing width: 12.5 mm

Dr4310

DR4310 고성능 슬림형 포텐시오미터 (전위차계) 신호전송기 (트랜스미터)
Potentiometer Transmitter DR 4310

Input signal:Potentiometer, 500 Ohm to 100 kOhm
Output signal:0 to 20 mA, 4 to 20 mA, ±20 mA, 0 to 10 mA, 2 to 10 mA, ±10 mA
0 to 10 V, 2 to 10 V, ±10 V, 0 to 5 V, 1 to 5 V, ±5V
Power supply:20 to 253 V AC/DC
Features:Pluggable screw clamp terminals, zero/span compensation, protective separation
housing width: 12.5 mm

Dr4700

DR4700 고성능 슬림형 Pt 온도센서 RTD 신호전송기 (트랜스미터)
Temperature Transmitter DR 4700

Sensor input:Pt 100, Pt 1000
Output:0 to 20 mA, 4 to 20 mA, 0 to 10 V
Ranges:-100 to +600 °C
Power supply:20 to 253 V AC/DC
Features:Pluggable screw clamp terminals, sensor diagnostics, protective separation
housing width: 12.5 mm

Ds7200

DS7200 고성능 슬림형 션트저항 / mV 신호변환기
Shunt / mV Isolation Amplifier DS 7200

Input:0 to ±60 mV, 0 to ±100 mV, 0 to ±150 mV, 0 to ±250 mV, 0 to ±300 mV, 0 to ±500 mV
Output:0 to ±20 mA, 0 to ±10 mA, 0 to ±10 V, 0 to ±5 V,  live/dead-zero
Power supply:20 to 253 V AC/DC
Features:Pluggable screw clamp terminals, zero/span compensation, protective separation
housing width: 12.5 mm

Ds7400

DS7400 슬림형 션트저항 / mV 신호변환기
Shunt / mV Isolation Amplifier DS 7400

Input:0 to 60 mV, 0 to 150 mV
Output:0 to 20 mA, 4 to 20 mA, 0 to 10 V
Power supply:20 to 253 V AC/DC
Features:Pluggable screw clamp terminals, calibrated signal setting, housing width: 12.5 mm
